RC Car Solidworks Model

In 2010, I studied a unit at UWA called MECH2401 - Engineering Design and Visual Communication. We competed in a challenge that required us to design and build a system to transport a payload across a track using two vehicles.

Our team based one of our vehicles on an off the shelf remote control car. During the semester I caught the flu, so I kept busy by disassembling the car, measuring every component with calipers and modelling it in Solidworks. The result is the following CAD model:

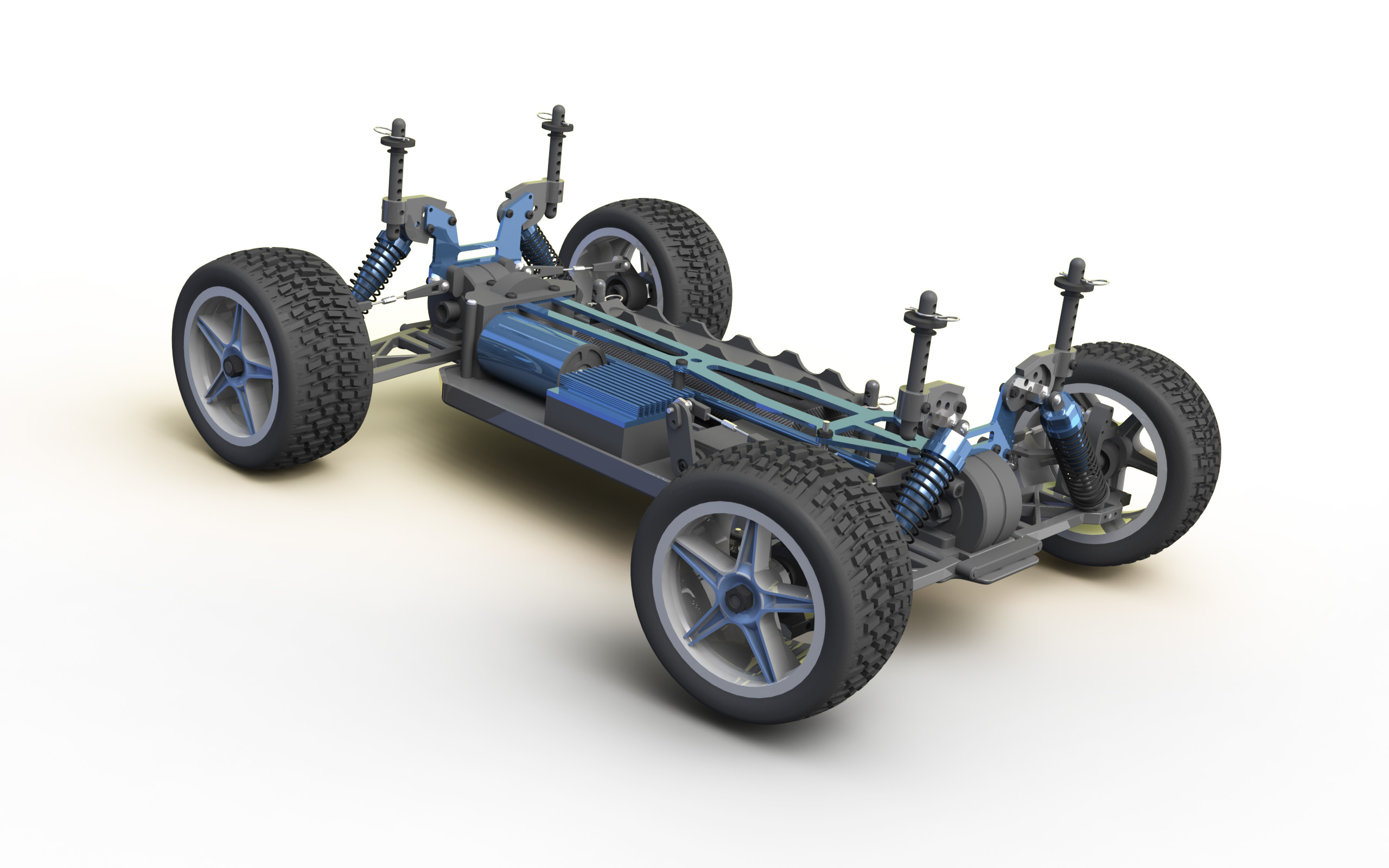

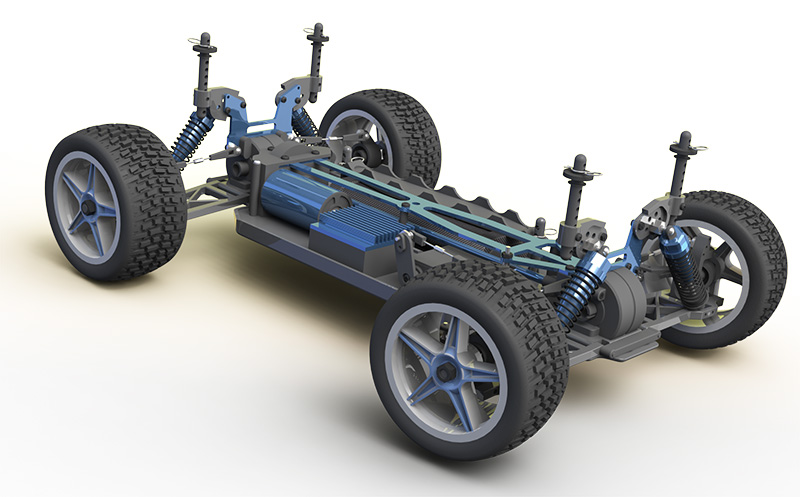

RC car render

All the parts except standard fasteners were drawn and rendered by hand - no downloaded content was used. We did terribly in the competition (our car drove off the ravine in the first few seconds), but we got good marks for our presentation.

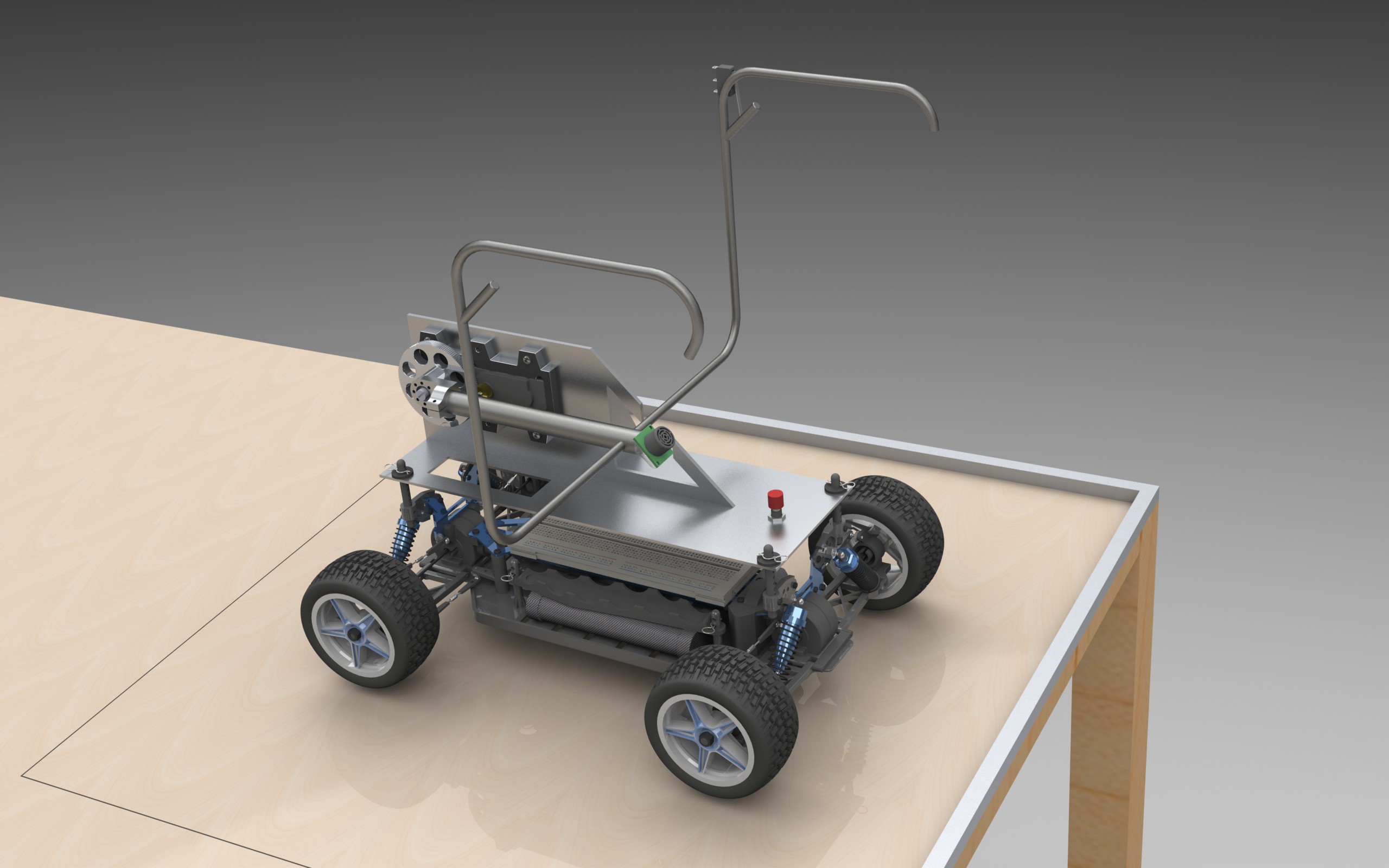

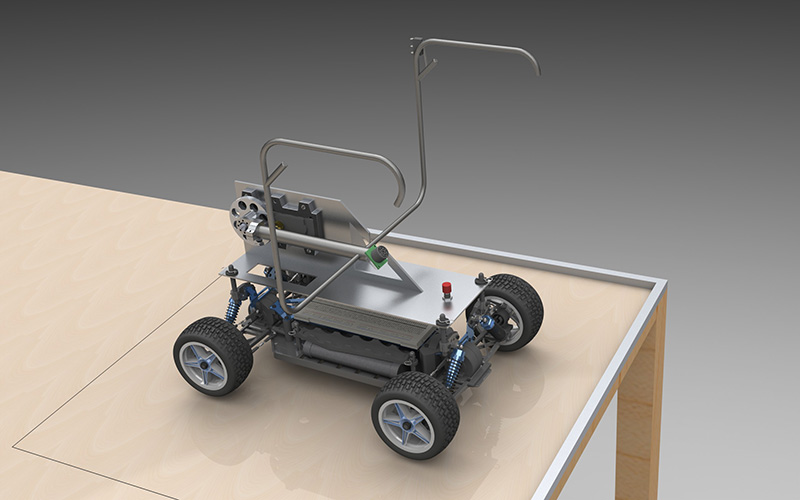

RC car render 2

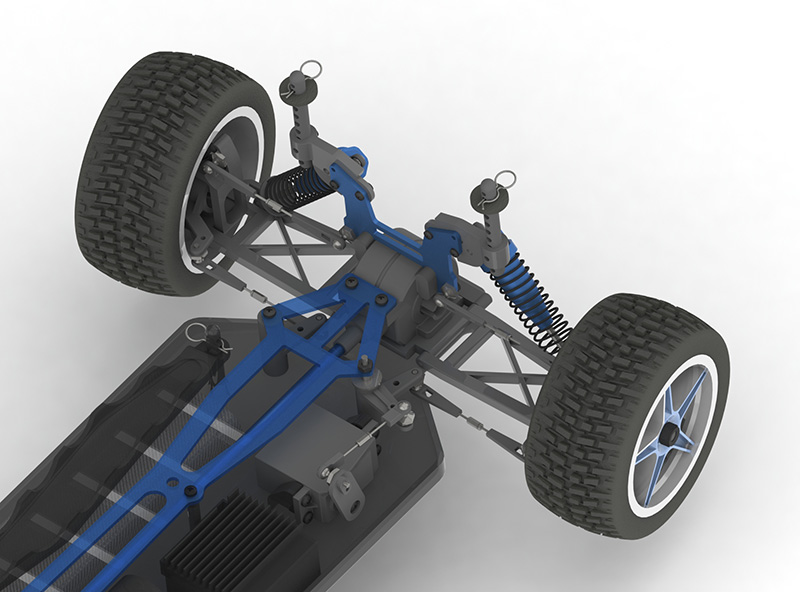

RC car render
